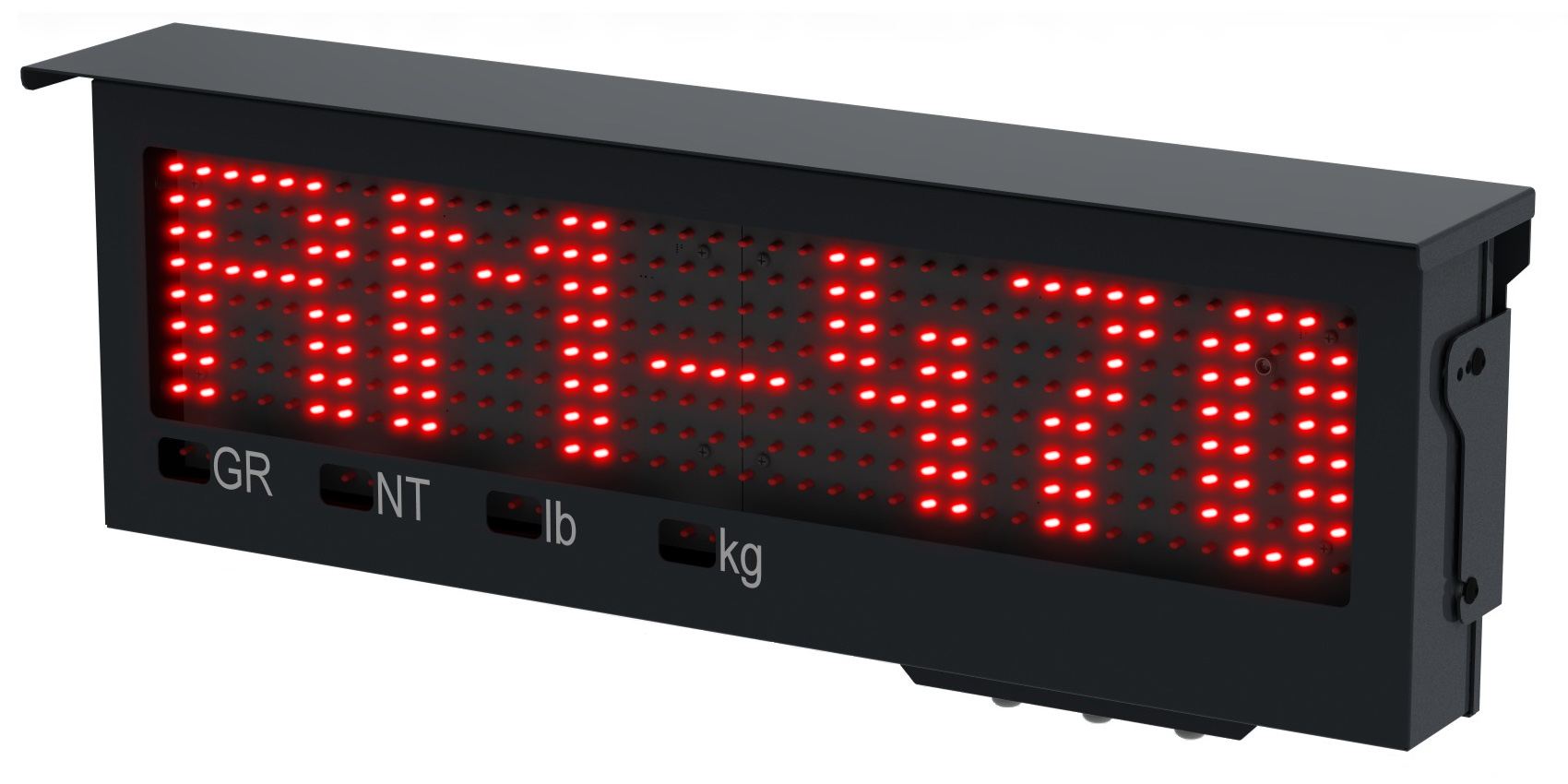

RM-470

RM-470 is the newest and most advanced of all our remote displays. It features Kazel Auto-Learn technology – our complex algorithm makes it a plug & display device which is up and running within a few seconds. It communicates with virtually every weighing indicator and all extra features can be configured via an easy-to-use WagSet 2 software.

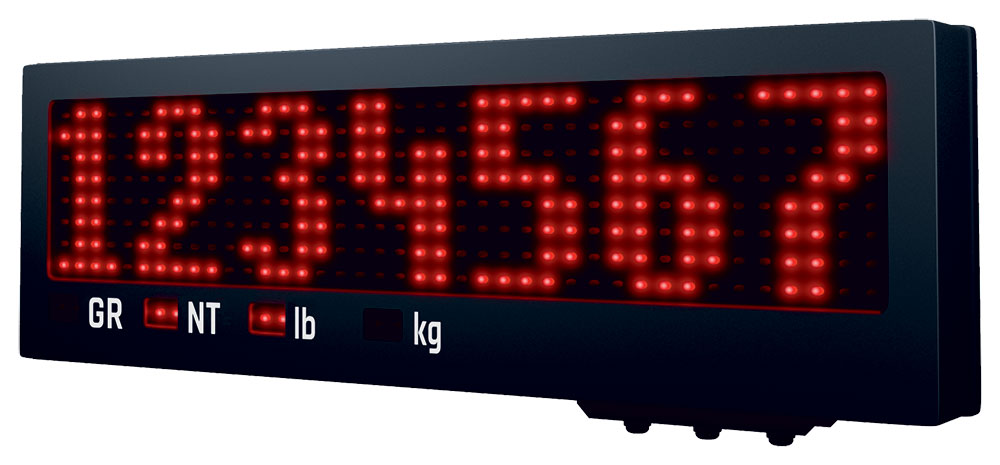

RM-470 comes in a powder coated steel housing which includes a drop-down electronics carriage for quick and easy installation and service. 8x40 pixels, 4.7” full matrix LED boards allow to display not only the weighing score, but also various info and advertising messages. Viewing distance of approx. 170 ft.

KAZEL Auto-Learn technology

Ethernet interface as standard

Firmware updates over the web panel

Super bright LEDs

Full matrix 8x40 pixels alphanumeric display

4.7” character height

Visibility of approx. 170 ft

Powder coated steel housing

Ingress Protection IP65

Dimensions: 26.7” W x 8.7” H x 2.9” D (not including accessories)

Net Weight: 11.0 lb (not including accessories)

Ship Weight: 26.4 lb (including all accessories)

Display Specification

Dimensions (WxHxD):
(not including accessories)
26.7in x 8.7in x 2.9in / 679mm x 220mm x 74mm
Digit height: 4.7in / 120mm
Acceptable input voltage range (long-term): 100 ÷ 240 VAC
Acceptable input voltage range (short-term): 85 ÷ 264 VAC
Acceptable input voltage frequency range: 47 ÷ 63 Hz
Operating temperature (ambient): -13°F ÷ 113°F / -25°C ÷ 45°C
Operating temperature (device surface): -13°F ÷ 158°F / -25°C ÷ 70°C
Average power consumption: 7W
Ingress protection rating IP: 65
Device weight:
(not including accessories)
11.0lb / 5kg

Download

Software
Title Version Size Download
RGB WagSet 2 2.11 4 338 KB
Datasheets and Manuals
Title Size View
RM-470 DATA SHEET 2665 kB
RM-470 DEVICE USER MANUAL 1442 kB
RM-470 OPERATION AND MAINTENANCE MANUAL 1860 kB
